This six-side drilling machine is built for panel furniture factories that need faster and more accurate drilling on cabinet panels, wardrobe panels, and other man-made boards. It is designed for horizontal drilling, vertical drilling, and grooving in one production flow.
Compared with manual drilling or ordinary side drilling machines, this machine helps reduce panel flipping and secondary processing. After importing processing data, operators can scan the code to complete the job, which makes it more suitable for digital panel furniture production.
Do You Really Need a Six-Side Drilling Machine?
You need this machine if your factory produces panel furniture and spends too much time on drilling, grooving, flipping boards, and checking hole positions.
If your production is very small or only needs simple side holes, a basic side drilling machine may be enough. But if you process cabinet panels, wardrobe panels, and customized furniture boards every day, a six-side drilling machine can make the workflow much more efficient.
The main search intent behind six side drilling machine is not just “drilling.” Buyers want to know whether the machine can reduce manual work, connect with production data, improve hole accuracy, and fit real panel furniture production.
Why This Machine Fits Panel Furniture Production
Panel furniture usually needs many holes on different faces of the board. Cabinet panels and wardrobe panels often require vertical holes, side holes, grooves, and front/back machining.
This machine is designed for six-sided processing, so the panel does not need repeated manual flipping. It can process horizontal and vertical drilling and grooving for man-made panels, solid wood panels, and semi-solid wood panels.
For furniture factories, this matters because hole accuracy affects assembly quality. A wrong hole position can slow installation, increase rework, and reduce customer satisfaction.
What Makes This Six-Side Drilling Machine Different?
The key difference is the six-sided drilling workflow. After importing processing data, operators can scan the code and complete processing without turning the board over or doing secondary processing.
This makes the machine different from ordinary side drilling equipment. It is not only drilling one side of the panel; it is designed for a more complete panel furniture drilling process.
Another important point is the two Z-axis drill banks. They can work at the same time or independently, which improves efficiency. If one drill bank has a problem, the other can still be used for processing.
Who This Six-Side Drilling Machine Is For
This machine is best for buyers who already produce panel furniture and want to improve drilling efficiency, accuracy, and data-driven processing.
It is especially useful when your production includes many customized panels, many hole positions, or different cabinet and wardrobe designs.
A practical fit for:
- Panel furniture factories
- Cabinet manufacturers
- Wardrobe manufacturers
- Customized furniture workshops
- Board furniture production lines
- Factories upgrading from side drilling machines
- Shops using digital production data and barcode processing
Key Features of This Six-Side Drilling Machine
Six-sided drilling without panel flipping
This machine is designed to reduce board turning and secondary processing. After processing data is imported, operators can scan the code and complete the drilling process more efficiently.
For panel furniture factories, this helps reduce manual handling and makes the workflow more stable.
Horizontal drilling, vertical drilling, and grooving
The machine is mainly used for horizontal and vertical drilling and grooving on man-made panels, solid wood panels, and semi-solid wood panels.
This makes it suitable for cabinet panels, wardrobe panels, and combined panel furniture parts.
Two Z-axis drill banks
The two Z-axis drill banks can work together or independently. This improves processing efficiency and gives the machine more flexibility if one drill bank needs maintenance.
For production users, this is a practical detail because downtime directly affects delivery schedules.
Barcode scanning workflow
The machine supports a workflow where processing data is imported first, then the operator scans the code to complete processing.
This is important for customized panel furniture factories, where each board may have different hole positions and machining requirements.
Stable panel holding during drilling
The machine uses side-tracking press rollers, vertical pressing plates, and lower support plates to keep the board fixed during processing.
Stable holding is important because drilling accuracy depends not only on the drill bank, but also on whether the panel stays fixed.
Data format compatibility
The machine supports multiple data formats, including BAN, DXF, XML, MPR, and BD. It can also connect with mainstream software in the market.
This helps factories that already use panel furniture design or production software.
What This Six-Side Drilling Machine Is Designed to Do
This machine is designed for panel furniture drilling, not general woodworking cutting. Its strongest value is improving drilling efficiency and reducing repeated manual steps.
It is especially useful when each board needs many holes, grooves, or different machining positions.
Main processing tasks:
- Six-sided drilling
- Horizontal drilling
- Vertical drilling
- Front and back grooving
- Cabinet panel drilling
- Wardrobe panel drilling
- Panel furniture hole processing
- Special-shaped cutting support
Typical Applications
Cabinet panel production
Cabinet panels often need holes on several sides for assembly hardware, connectors, shelves, and structure fixing.
A six-side drilling machine helps process these holes faster and more consistently, especially in customized cabinet production.
Wardrobe panel production
Wardrobe production often involves large panels with many hole positions. Manual drilling can be slow and easy to misalign.
This machine helps process wardrobe panels with better workflow control, especially when using imported data and barcode scanning.
Custom panel furniture
Customized panel furniture usually means every board may be different. That is where digital drilling workflow becomes important.
Because this machine supports several data formats and barcode-based processing, it is better suited to custom furniture factories than a simple manual drilling setup.
Front and back grooving
The upper and lower spindles can process symmetrical slots on the front and back at the same time.
This is useful for factories that need grooving work in addition to normal drilling.
Six-Side Drilling Machine vs Side Drilling Machine
A side drilling machine is usually suitable for simpler side-hole work. It can be useful for smaller shops or lower-volume production.
A six-side drilling machine is different. It is designed for more complete panel processing, including horizontal drilling, vertical drilling, grooving, barcode scanning, and reduced panel flipping.
If your factory only needs occasional side holes, a side drilling machine may be enough. If you produce panel furniture every day and need faster automatic drilling, this six-side drilling machine is the better fit.
Why This Machine Makes Sense for Furniture Factories
This machine makes sense when drilling accuracy, production speed, and workflow control all matter.
It can reduce manual handling, reduce repeated board positioning, and connect with mainstream data formats. For panel furniture factories, those points directly affect efficiency and assembly quality.
It also uses servo drive, planetary reducer, lapping guide rails with steel strip, and a Quick CNC custom control system. These details help position it as a production machine, not a simple workshop drill.

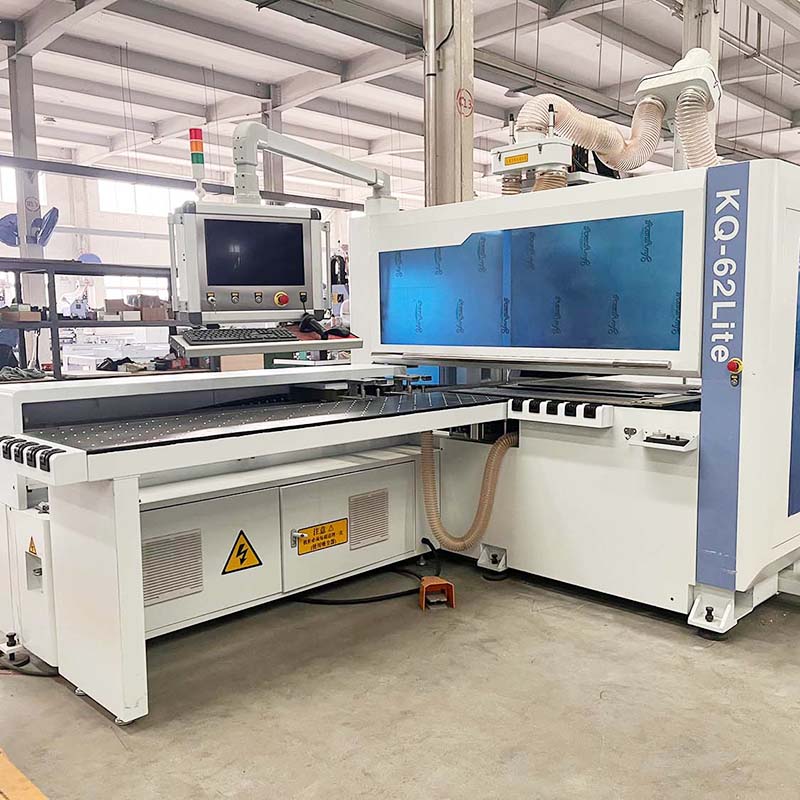

Specifications
| Item | Specification |
|---|---|
| Model | KQ-62Lite |
| Workpiece Length | 70–2800 mm |
| Workpiece Thickness | 9–60 mm |
| Workpiece Width | 50–1220 mm |
| Minimum Panel Size | 70 × 50 mm |
| Max. Gripper Speed X-Axis | 135 m/min |
| Max. Speed Y-Axis | 85 m/min |
| Max. Speed Z-Axis | 25 m/min |
| Control System | Quick CNC custom control system |
| Workbench Height | 890 mm |
| Spindle | 3.5kW × 2 / 18000 r.p.m |
| Drills | Top drill 9V4H × 1 + bottom drill 7V |
| Driver | Servo |
| Reducer | Planetary gear reducer |
| Linear Guide | Lapping guide rails with steel strip |
| Positioning Resolution | 0.03 / 1000 |
| Repositioning Resolution | 0.02 / 1000 |
| Voltage | AC380V / 50Hz |
| Overall Size | L 5600 × W 2470 × H 2600 mm |
| Total Power | About 23 kW |
| Weight | About 3500 kg |
Main Components and Advantages
Quick CNC custom control system
The machine uses a Quick CNC custom control system. It supports simulation processing view, helping operators find potential processing problems in time and reduce losses.
For panel furniture factories, this is useful because drilling mistakes can quickly turn into wasted boards.
Spindle and drilling bank
The machine uses two high-efficiency 3.5kW spindles. The upper drilling bank uses an L-shaped customized layout, while the lower drilling bank uses a 3×3 row drilling layout.
This structure is designed to improve drilling efficiency for panel furniture production.
Heavy frame and strong transmission
The machine bed is welded with 150 × 100 mm rectangular tube and annealed to eliminate stress. The guide rail has a steel belt, and the ball screw uses a high dustproof design.
This matters because drilling machines often work in dusty panel furniture environments.
Servo motor and driver
The machine is driven by servo motors. Compared with stepper motors, closed-loop servo motors offer higher accuracy, faster response, and better load capacity.
For drilling accuracy and production stability, this is a meaningful advantage.
Is This the Right Six-Side Drilling Machine for You?
Choose this machine if your factory makes panel furniture, cabinet panels, wardrobe panels, or customized boards with many drilling positions.
It is especially suitable if you want barcode scanning, automatic data processing, less board flipping, and better drilling efficiency.
It may not be necessary if your production is very small or only needs simple side holes. In that case, a side drilling machine may be enough.
APPLICATION
Woodworking
Cutting, carving, engraving for wood products.
Furniture Production
Cabinetry, doors, panels and custom furniture.
Instrument Making
3D letters, light boxes, signage and logos.
Advertising
Billboards, displays, promotion materials.
Acrylic & Plastic Processing
Cutting, engraving, polishing acrylic and plastic.
Stone Processing
Granite, marble, quartz cutting and carving.
Metal Fabrication
Drilling, milling, cutting metal materials.
Mold & Prototype Making
Molds, prototypes and precision components.
Do I really need a six-side drilling machine for panel furniture?
Yes, if your factory processes many cabinet panels, wardrobe panels, or customized boards every day. A six-side drilling machine reduces panel flipping and secondary processing. If you only do occasional side holes, a simpler side drilling machine may be enough.
What is the main advantage over a side drilling machine?
The main advantage is a more complete drilling workflow. This machine handles horizontal drilling, vertical drilling, grooving, and barcode-based processing. A side drilling machine is usually more limited. For panel furniture production, six-side drilling saves time and reduces manual positioning work.
Can this machine reduce manual board flipping?
Yes. The reference page says the machine can complete processing without turning over the board or doing secondary processing after importing data and scanning the code. This is one of the biggest reasons buyers choose a six-side drilling machine.
Is this machine suitable for customized furniture production?
Yes. Customized furniture often has different board sizes and hole positions. This machine supports multiple data formats, including BAN, DXF, XML, MPR, and BD, and can connect with mainstream software. That makes it more suitable for flexible panel furniture production.
What panel sizes can this machine process?
It can process workpieces from 70 to 2800 mm in length, 50 to 1220 mm in width, and 9 to 60 mm in thickness. This range is suitable for many cabinet panels, wardrobe panels, and panel furniture parts.
Can the two drill banks work separately?
Yes. The two Z-axis drill banks can work at the same time or independently. If one drill bank has a problem, the other can still be used for processing. That gives the machine more flexibility and helps reduce production interruption.
How does the machine keep panels stable during drilling?
The machine uses side-tracking press rollers, vertical pressing plates, and lower support plates to hold the board. This helps keep the panel fixed during drilling and supports better hole accuracy. For furniture panels, stable holding is very important.
Can this machine connect with my furniture design software?
It has better compatibility than a simple manual machine. The reference page says it supports BAN, DXF, XML, MPR, BD and other formats, and can connect with mainstream software in the market. You should still confirm your exact software before ordering.
Is this machine suitable for small workshops?
It depends on your production volume. If you only drill a few boards per day, this machine may be more than you need. If you produce customized panel furniture regularly and want faster drilling, less manual handling, and better data workflow, it can be valuable.
What should I send before asking for a quote?
Send your panel size range, board thickness, main products, software data format, daily output target, and whether you need drilling, grooving, or both. These details help confirm whether this six-side drilling machine fits your production workflow.
