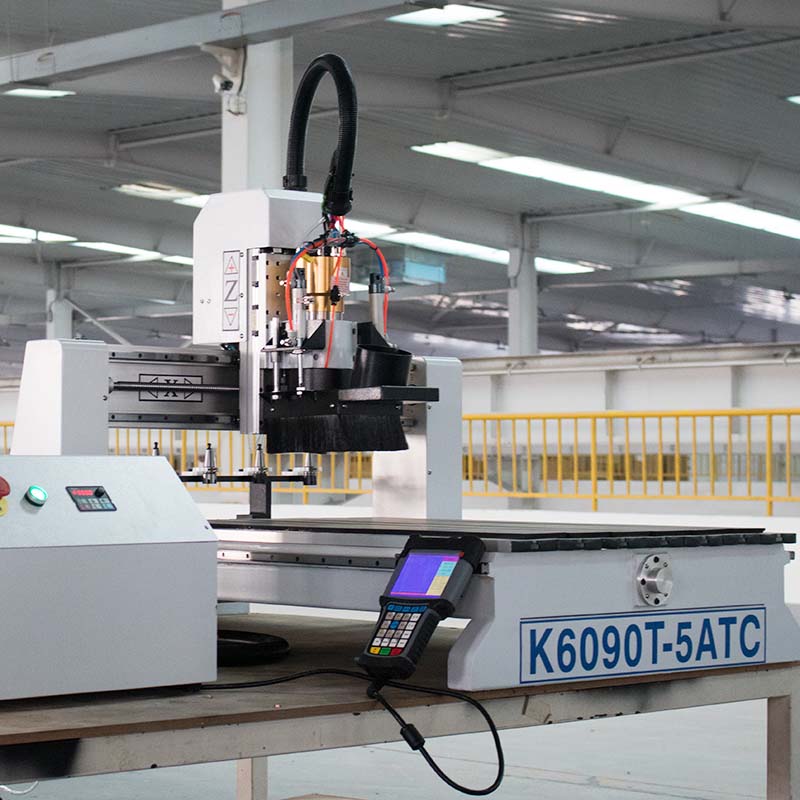

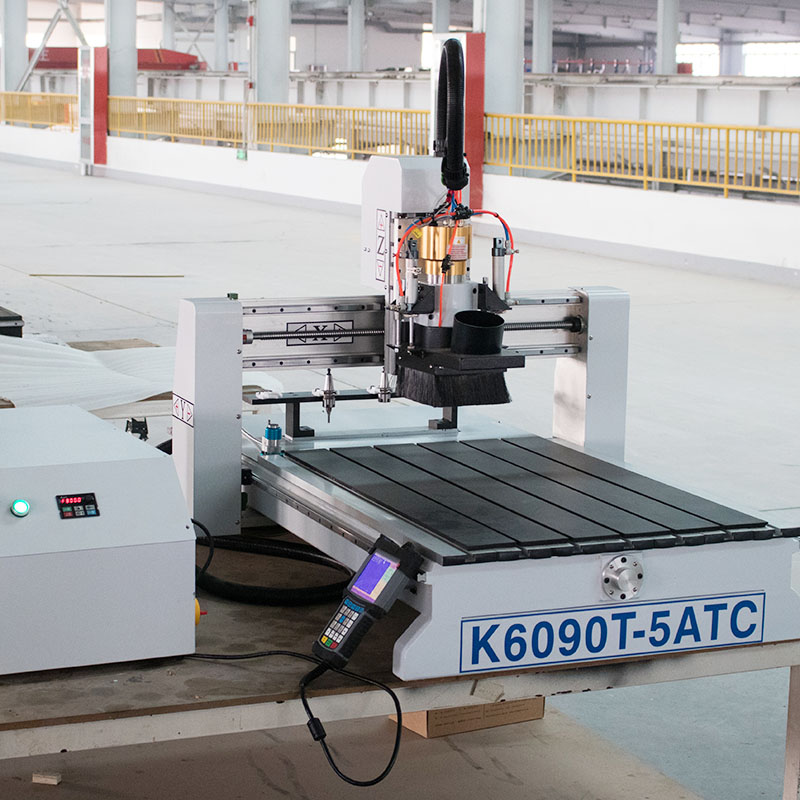

Cnc mini router K6090ATC is a very practical model, which has the high precision like large machines, while also meeting the needs of tool changing in the process .
It will help you save labor costs and increase efficiency. As excellent starer models,this CNC can produce a wide variety of design with tremendous precision.
The working size can be designed to 600×1200 or 1200x1200mm .
The 4th axis and the vacuum table is also available .
1. Machine base is produced by CNC machine, and machine base’s five sides are produced at one same procession to make sure the machine body geometry tolerance is standard.
2. The unique reality of the 3-axis screw, the machining accuracy is more accurate.
3. DSP B57 control system, allows for tool path previewing and 4 axis function.Processing file one time USB flash drive import,can work all the time.
4. The linear tool magazine supports three tool changers to meet the processing technology of most products.The raw materials are processed on the table at one time without manual intervention.Additional automatic tool sensor to save your time and further improve work efficiency.
Parameter
| Modle | K6090T |
| Working area | 600x900x150mm |
| Y axis rail | 15mm square |
| Control System | DSP B57 |
| Spindle | 2.2kw ATC water cooling |
| Table | T-slot with clamps |
| Motor | Stepper Motor |
| Tool magazine | Linear 3 pcs auto tool changer |
| Inverter | Delta inverter |
| Ball screw | Taiwan TBI ball screw |
| Sensor | Auto tool height sensor |
| Rail | Taiwan brand |
| Max.speed | 8,000mm/min |
| Max cutting speed | 5,000mm/min |
| Spindle speed | 24,000RPM |
| Working voltage | AC220v/50-60hz |
| Software | Artcam / Type 3 |
| Packing dimension | 1800x1090x1040mm,250kgs |
| Option | 600x1200x150mm working size4 axis rotary device3.Vacuum table |
Accessories and Advantage
Hand controlled system, DSP B57
There is no need to attach your CNC router to your computer to operate it. Simply transfer your file to the handheld controller via USB storage device. The handheld B57 controller allows for tool path previewing and 4 axis function.
2.2kw water cooling spindle
The router 2.2kw spindle is automatic tool changer type,very high precision 3HP industrial single phase continuous duty liquid-cooled spindle. which keeps the spindle at a constant temperature and maintains longevity.
Stepper motor and rails
The high-precision stepper motor and Taiwan guide rail make the machine run faster and the processing is more perfect,Main types of processing:engraving,cutting,3d milling ,drilling etc .
Tool sensor
The 3 pcs linear tool magazine with automatic tool sensor to save the tool changing speed and tool setting time. There is a tool release button beside the spindle cover, which is convenient and improve efficiency.
Application
Advertising industry:Signage, Logo ,Badges, Display board, Meeting sign board, Billboard,Advertising filed, Sign making,Acrylic engraving and cutting, Crystal word making, Blaster molding and other advertising materials derivatives making.
Wood furniture industry:Doors, Cabinets, Tables, Chairs, Wave plate, Fine pattern, Guitar….
Artwork and Decoration:wood crafts, gift box, jewelry box.
Other:Relief sculpture and 3D engraving and Cylindrical object.
APPLICATION
Woodworking
Cutting, carving, engraving for wood products.
Furniture Production
Cabinetry, doors, panels and custom furniture.
Instrument Making
3D letters, light boxes, signage and logos.
Advertising
Billboards, displays, promotion materials.
Acrylic & Plastic Processing
Cutting, engraving, polishing acrylic and plastic.
Stone Processing
Granite, marble, quartz cutting and carving.
Metal Fabrication
Drilling, milling, cutting metal materials.
Mold & Prototype Making
Molds, prototypes and precision components.
Why should I choose a 12 tool linear ATC CNC router instead of a smaller ATC machine?
Choose a 12-tool ATC router if your jobs often need many different tools in one workflow. Cabinet doors, furniture parts, stair components, and decorative panels may require cutting, drilling, profiling, and engraving. More tool positions reduce manual changes and make complex production easier to manage.
Is UE-481 mainly for cabinet and furniture production?
Yes. The reference page directly mentions kitchen cabinets, furniture, wood cabinet making, wood door making, and solid wood work. That makes UE-481 much more than a general CNC router. Its best use is multi-tool woodworking production where automatic tool changing saves real time.
What is the biggest advantage of the 12 pcs linear tool changer?
The biggest advantage is tool capacity with a space-saving layout. The 12 tools are held in a linear rack under the gantry, giving users more available tools without a complicated layout. This helps when one job needs several cutters, drills, and engraving tools.
Is the 9kW spindle enough for solid wood and cabinet work?
Yes, for this machine’s intended use. UE-481 uses a 9kW ISO30 air-cooled spindle with 24,000 rpm. This is a strong configuration for cabinet production, furniture parts, doors, stair components, and solid wood work, especially when combined with automatic tool changing.
Does the Syntec control system matter for this machine?
Yes. ATC machines need stable control for tool calling, file reading, and program execution. The reference page highlights Syntec control, U-disk compatibility, fast reading speed, and intelligent file checking. That makes the control system an important part of the machine’s production value.
Can this machine handle full-size boards?
Yes. The listed working area is 1220 × 2440 × 200 mm, which fits common 4×8-class board processing. The reference page also lists custom working sizes, including 1220×2800, 1500×3000, 2000×3000, and 2000×4000 mm, depending on production needs.
Is UE-481 suitable for custom staircases?
Yes. The reference page specifically says this ATC CNC router can produce custom staircases. Stair parts often need profiling, shaping, and multiple tool operations, so the 12-tool linear ATC system can be useful for this type of woodworking production.
Can it also process signage and acrylic?
Yes. The application section includes signage, logos, badges, display boards, acrylic engraving, and acrylic cutting. These are useful additional applications, but the strongest page focus should remain on 12-tool ATC woodworking, cabinets, furniture, doors, and staircases.
Is this machine too advanced for a small workshop?
It depends on the work type. If a small workshop makes complex cabinets, custom furniture, doors, or stair parts, UE-481 can be valuable. If the work is simple cutting with only one or two tools, the 12-tool ATC system may be more than needed.
What should I send before asking for a quote?
Send your main products, board size, material type, required tools, daily output target, and whether you need custom working size. If you make cabinets, doors, or stair parts, also send sample drawings so we can judge whether the 12-tool ATC setup fits your workflow.
