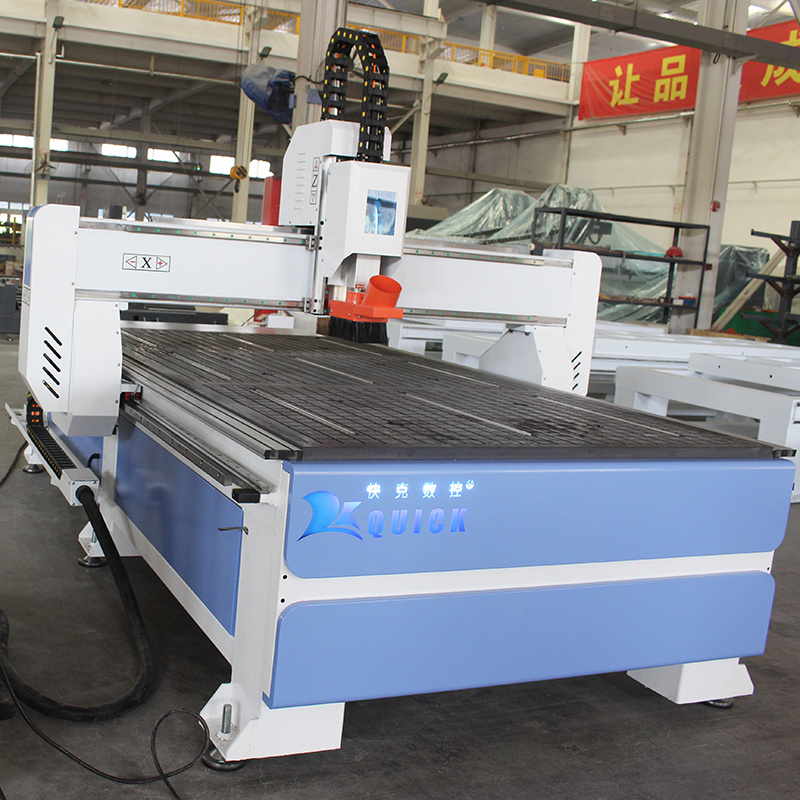

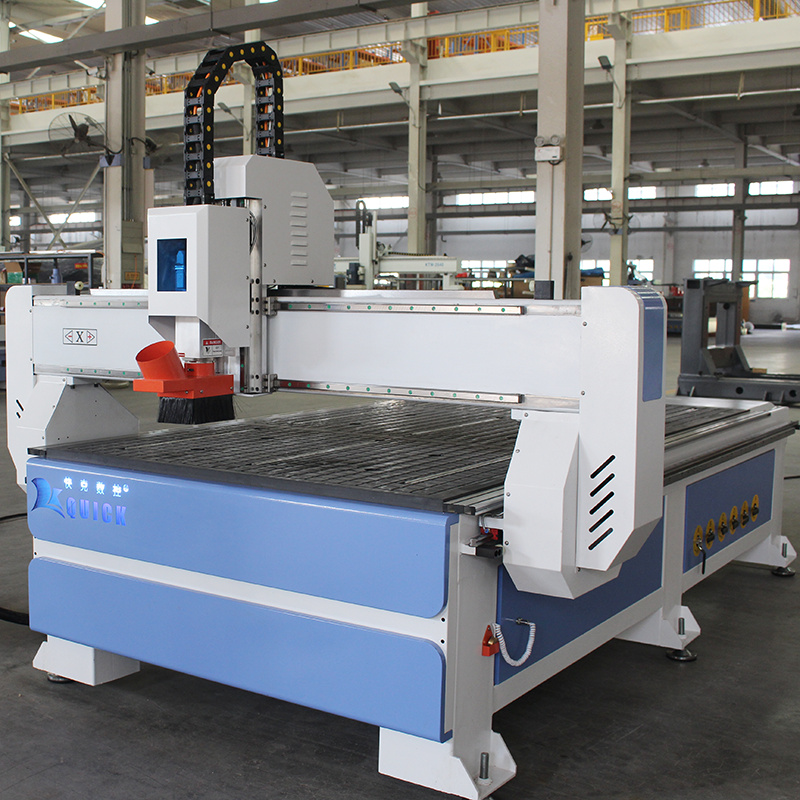

This 1325 wood CNC router is built for users who need a practical full-size machine without moving straight to a higher-cost ATC model. With a 1300 × 2500 mm working area, 3.5kW spindle, and vacuum T-slot table, it is a strong fit for wood sheets, cabinets, doors, signs, acrylic panels, and many other common workshop jobs.
Who Is This 1325 Wood CNC Router Best For?
This machine is a good choice for buyers who want a full-size 4×8 CNC router at a more affordable level. It works especially well for wood doors, cabinet parts, tables, chairs, signs, acrylic sheets, display boards, wood crafts, and other sheet-based jobs that do not require automatic tool changing as standard.
It is a practical fit for:
- woodworking shops
- cabinet and door makers
- sign makers
- acrylic and advertising material processors
- furniture component workshops
- buyers starting with their first 1325 CNC router
Why Choose This Affordable 1325 CNC Router?
The value of this machine comes from its size-to-cost balance. It gives you a standard 1300 × 2500 mm processing area, which is a common working size for full sheets, while keeping the configuration simple and practical. Instead of pushing the price up with a more complex ATC setup, it focuses on the features many buyers need first: stable sheet processing, clear operation, vacuum holding, and enough power for common wood and plastic work.
Key Features of the 1325 Wood CNC Router
1300 × 2500 mm working area
This 1325 format gives you the table size many woodworking and sheet-processing buyers are looking for. It is well suited to full boards, cabinet components, doors, signs, and other medium to large workpieces.
3.5kW air-cooled spindle
The machine is equipped with a 3.5kW air-cooled spindle running up to 18,000 rpm. It is a practical setup for common routing, engraving, drilling, and cutting work on wood, plastic, foam, and similar materials.

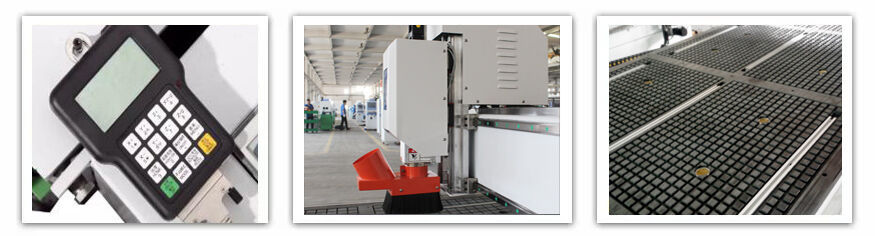

Vacuum + T-slot dual-purpose table
The table combines vacuum adsorption with T-slot clamping, giving users more flexibility for different workpieces. This is useful when some jobs are easier to hold by suction and others need direct fixture clamping.
DSP A11 handheld controller
The DSP A11 handheld controller supports offline operation and USB file transfer. For many workshops, this makes daily operation simpler because the machine does not need to stay connected to a computer during machining.
X/Y rack and pinion, Z ball screw
The machine uses rack and pinion drive on X and Y, with a ball screw drive on Z. This is a practical combination for larger-format woodworking routers because it balances travel speed with dependable vertical control.
Heavy-duty structure
This machine is positioned as a heavy-duty CNC router with a wider processing range. It is a practical choice for buyers who want one machine for mainstream wood sheet work, signage, acrylic cutting, and general workshop production.
What Can This 1325 Wood CNC Router Cut?
This machine is designed for more than just wood. It is presented as suitable for plastic, wood, foam, and composite materials, and the application section also includes acrylic engraving and cutting. That makes it a flexible option for workshops that handle mixed sheet materials instead of only one product type.
Common materials include:
- solid wood
- MDF
- plywood
- acrylic
- PVC and similar plastics
- foam board
- composite sheet
- materials
Typical Jobs for a 1325 Wood CNC Router
For Woodworking
Cut and engrave doors, cabinets, tables, chairs, decorative panels, and fine wood patterns. This is one of the clearest target markets for the machine.
For Signs and Acrylic
Produce signs, logos, badges, display boards, meeting signs, and acrylic parts. This helps you attract customers outside traditional furniture production too.
For Crafts and Custom Products
Make wood crafts, gift boxes, jewelry boxes, relief carving, and other custom decorative items. This makes the machine relevant to smaller custom workshops as well.
1325 Wood CNC Router Specifications
| X-Y-Z axis working area | 1,300 x 2,500 x 200mm |
| Machine size | 2,000 x 3,100x1700mm |
| Repositioning resolution | 0.02mm |
| X-Y movement | rack and pinion, gear drive |
| Z movement | ball screw drive/Taiwan |
| Guide | y Linear ￠20 square/Taiwan |
| Max. speed | 35,000mm/min |
| Max. cutting speed | 15,000mm/min |
| Spindle power | 3.5KW air cooling |
| Spindle speed | 18,000rpm |
| Inverter power | 3.7KW |
| Drive motors | Stepper motor |
| Working voltage | AC380V/50-60Hz, 3-phase |
| Command code | G code |
| Computer interface | USB 2.0 |
| Table | vacuum with T slot table |
| pump | 7.5kw (Option) |
| controller | handheld controller |
| packing size | 2280x3200x1800 1000kgs |
Why This Configuration Makes Sense for Budget-Conscious Buyers
This machine is built as a simpler non-ATC 1325 router, which is exactly why it can stay in a lower price range. The listed EXW price is $3800–$4700, so the main selling point is affordable access to full-sheet CNC processing rather than higher-cost automation. For many buyers, that is the real advantage: enough table size, holding power, and spindle performance without paying for features they may not need yet.
Is This the Right 1325 CNC Router for You?
Choose this model if you want a full-size woodworking CNC router for routine sheet work, sign production, acrylic cutting, cabinet components, doors, or general workshop jobs, and you want to keep the starting budget under tighter control. If your work involves constant tool changes, more complex automation, or faster production flow, then a more advanced ATC model may be the better long-term fit.
APPLICATION
Woodworking
Cutting, carving, engraving for wood products.
Furniture Production
Cabinetry, doors, panels and custom furniture.
Instrument Making
3D letters, light boxes, signage and logos.
Advertising
Billboards, displays, promotion materials.
Acrylic & Plastic Processing
Cutting, engraving, polishing acrylic and plastic.
Stone Processing
Granite, marble, quartz cutting and carving.
Metal Fabrication
Drilling, milling, cutting metal materials.
Mold & Prototype Making
Molds, prototypes and precision components.
What is the working area of this 1325 wood CNC router?
The working area is 1300 × 2500 × 200 mm. That size is suitable for full sheets, cabinet parts, doors, signs, and other common woodworking or sheet-processing jobs.
What materials can this machine cut?
It is presented for wood, plastic, foam, and composite materials, and the application section also includes acrylic engraving and cutting. That makes it a practical mixed-material workshop machine.
Is this 1325 CNC router good for cabinet work?
Yes, it can be a good fit for cabinet-related work. The listed applications include cabinets, doors, and furniture parts, which are exactly the types of jobs many 1325 buyers look for.
Does the machine have a vacuum table?
Yes. It uses a vacuum table with T-slot clamping, so users have more flexibility depending on the workpiece and holding method required.
What controller does this machine use?
It uses a DSP A11 handheld controller. This supports offline operation and USB file transfer, which can make daily use easier for many workshops.
Is this machine suitable for small business use?
Yes, especially for workshops that want a full-size machine without moving into a much higher budget range. It is suitable for routine wood sheet work, signs, acrylic jobs, and custom production.
What voltage does the machine require?
The listed voltage is AC380V, 50–60Hz, 3-phase. For export buyers, voltage should still be reconfirmed before order because electrical standards often vary by country.
